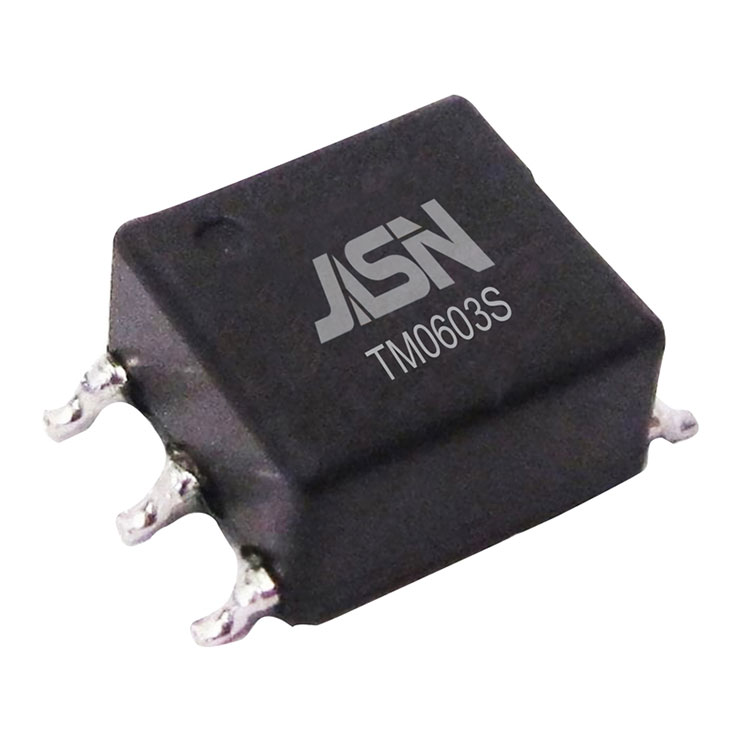

Single Channel BMS Signal Transformer

JASN as the professional manufacturer, we would like to provide you high quality Single Channel BMS Signal Transformer. And we will offer you the best after-sale service and timely delivery.

Model:TM0603S

Send Inquiry

Product Description

JASN as a professional high quality Single Channel BMS Signal Transformer manufacturer, you can rest assured to buy Single Channel BMS Signal Transformer from our factory and we will offer you the best after-sale service and timely delivery.

Feature

Current Rating:350mAac
Voltage-Time:11uS
Coplanarity:0.1[.004]Max
Complies with the following requirements as defined by
IEC60950-1,EN60950-1,UL60950-1/CSA60950-1 and AS/NZS60950-1
-Functional insulation for a primary circuit at a working voltage of 400Vrms
Comply with RoHS requirements.
Operating temperature range:-40℃to +125℃.
Qualified to AEC-Q200

Electrical Specifications @ 25℃

PAPAMETER		TEST CONDITIONS	VALUE
D.C.RESISTANCE	1-3	@20℃	0.35ohms max
D.C.RESISTANCE	6-4	@20℃	0.57ohms max
INDUCTANCE	1-3	10KHZ 100mVac.LS	475uH min
INTERWINDING CAPACITANCE 1-6		100KHZ 10mVac.CS	17.5pF typ
DIELECTRIC	1-6	3125Vac 1seconds	2500Vac ，1minute
TURNS RATIO		6-4:1-3	2:1±2%
