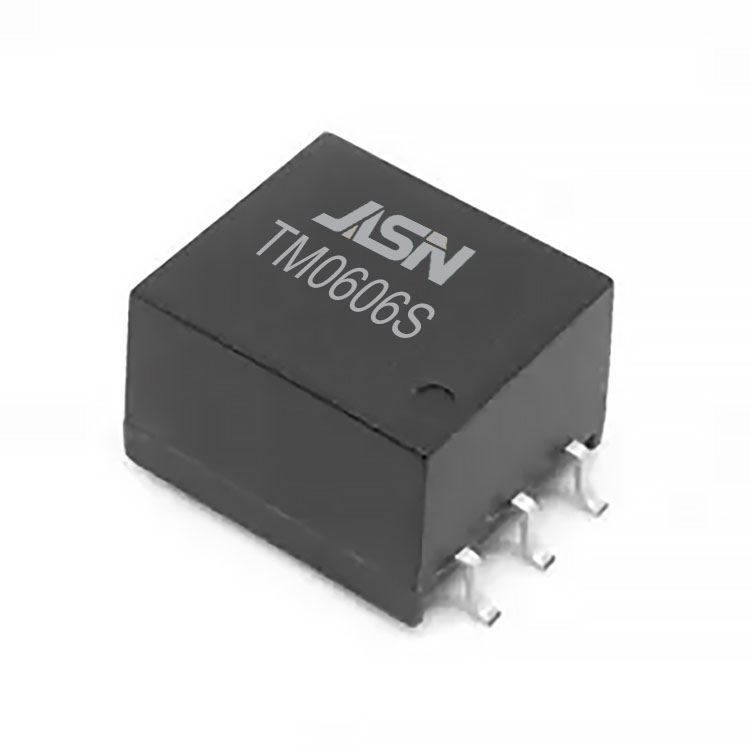

BMS Signal Transformer without CMC

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality BMS Signal Transformer without CMC. We look forward to cooperating with you.

Feature

● Comply with RoHS requirements

● Compliance to J-STD

   1.J-STD-002:Solderability at 245C reflow profile

   2.J-STD-020:Level 1，No moisture sensitive

   3.J-STD-075:R7, 245C Maximun through reflow solder

● Coplanarity:0.1[.004]Max

● Isolation Category：Basic

● Working Voltage ：1000VDC

● Creepage Distance：10 mm Min

● Clearance Distance：7 mm Min

● Operating temperature range:-40C to +125C.

● Storage Temperature range: -50C to +125C.

Electrical Specifications @ 25℃

NOTE:F is frequency in MHZ
