Dual Channel High Voltage lsolation Modules

Jansum is Dual Channel High Voltage lsolation Modules manufacturers and suppliers in China who can wholesale Dual Channel High Voltage lsolation Modules. We can provide professional service and better price for you.

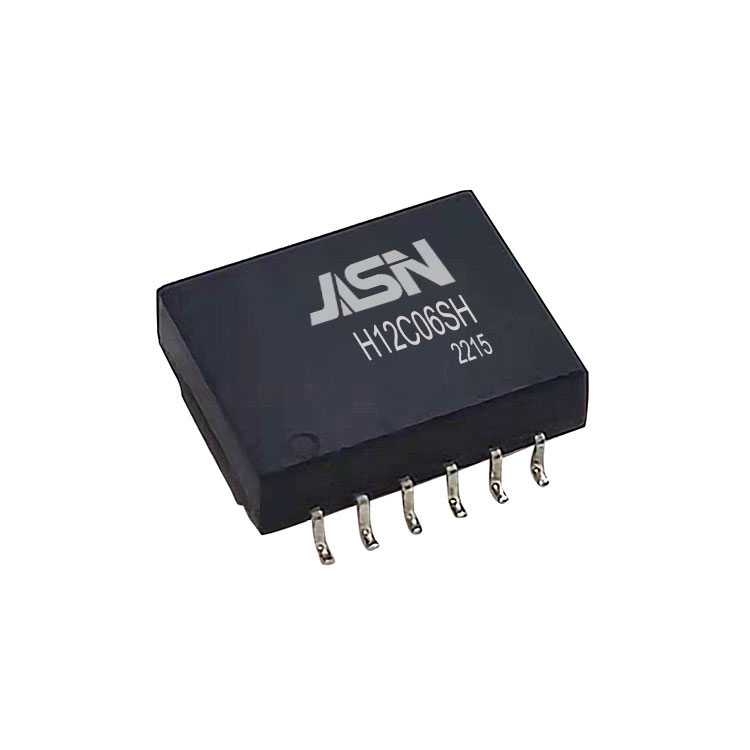

Model:H12C06SH

Model:H12C06SH

Send Inquiry

PDF DownLoad

Product Description

Buy Discount Quality Dual Channel High Voltage lsolation Modules with made in China. Jansum is a Dual Channel High Voltage lsolation Modules manufacturer and supplier in China.

Feature

Comply with RoHS requirements.
Operating temperature range: -40℃ to +125℃.
Storage temperature range: -40℃ to +125℃. Clearance
distance: >20mm.
Crepage distance: >22mm.

Electrical Specifications @ 25℃

OCL:	300uH Min. @100KHz/0.1V @-40℃TO +125℃
Hi-POT :	6220VDC/1mA/60Sec
Turn Ratio:	1CT:1CT±2%
LK:	0.5uH Max @100KHz/0.1V
D.C.R:	(1-3,4-5) 0.7 ohm Max
D.C.R:	(7-9,10-12) 0.85 ohm Max
Insertion Loss:	4MHz: -0.25dB Max
Return Loss:	4MHz: -20dB Min
Cross Talk :	4MHz: -50dB Min
CMR:	1-10MHz: -30dB typ
CMR:	10-400MHz: -20dB typ
Insulation Resistance:	400MΩ/250Vds Min
