Isolation Transformer
About Our Isolation Transformer
Jansum as a professional Isolation Transformer manufacturer, you can rest assured to buy Isolation Transformer from our factory and we will offer you the best after-sale service and timely delivery.
Features & Benefits
4Pins thru 12Pins SMD package.
Hi-pot rating reached to 5KVrms.
Matching for different Turns Ratio.
Jansum as a professional Isolation Transformer manufacturer, you can rest assured to buy Isolation Transformer from our factory and we will offer you the best after-sale service and timely delivery.
Features & Benefits
4Pins thru 12Pins SMD package.
Hi-pot rating reached to 5KVrms.
Matching for different Turns Ratio.
|
Part Number |
Product Figure |
Inductance |
Turns ratio |
Cw/w |
Leakage Inductance |
Pri DCR | Package |
Number of Pins |
Hi-pot Rating |
Drawing |
| CM0407S |
|
51uH Typ | 1:1 | / | 2.0uH Typ | 0.16Ω Max | SMD | 4Pin | 500Vrms |
 PDF
|
| CM0619S |
|
100uH Min | 1:1 | 10pF max | 0.11uH Max | 0.35Ω Max | SMD | 6Pin | 1500Vrms |
PDF
|
| CM0601S |
|
50uH Typ | 9:20 | / | 1uH Max | 0.45Ω Max | SMD | 6Pin | 2000Vrms |
PDF
|
| CM0615S |
|
127uH Typ | 17:18:18 | / | 1uH Max | 0.30Ω Max | SMD | 6Pin | 2500Vrms |
PDF
|
| CM0616S |
|
99uH Typ | 15:25:25 | / | 1uH Max | 0.45Ω Max | SMD | 6Pin | 2500Vrms |
PDF
|
| CM0625SW |
|
650uH Min | 1:3 | / | 0.6uH Max | 0.8Ω Max | SMD | 6Pin | 1250Vrms |
PDF
|
| CM0629SH |
|
1.0mH Typ | 3:8 | / | 0.6uH Typ | 0.8Ω Max | SMD | 6Pin | 2000Vrms |
PDF
|
| H06C01S |
|
130uH Min | 1:1 | 12pF max | 0.3uH Max | 0.5Ω Max | SMD | 6Pin | 2000Vrms |
PDF
|
| H06C01SH |
 |
10/100 | SINGLE | SMD | 6Pin | 2.54mm | Non-PoE | 0℃to+70℃ | 3000Vrms |
PDF
|
| H06C05SH |
|
150uH Min | 1:1 | / | 0.5uH Max | 0.55Ω Max | SMD | 6Pin | 3000Vrms |
PDF
|
| CM0801SH |
|
16uH Min | 3:3:2:6 | 40pF max | 0.5uH Max | / | SMD | 8Pin | 4300Vrms |
PDF
|
| CM0808SH |
|
1.5mH Typ | 1:1.13 | / | / | 1.2Ω Max | SMD | 8Pin | 4400Vrms |
PDF
|
| H12C06SH |
|
300uH Min | 1:1 | / | 0.5uH Max | 0.7Ω Max | SMD | 12Pin | 4400Vrms |
PDF
|
- View as
Single Channel Isolation Transformer
You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality Single Channel Isolation Transformer. We look forward to cooperating with you.
Model:CM0407S

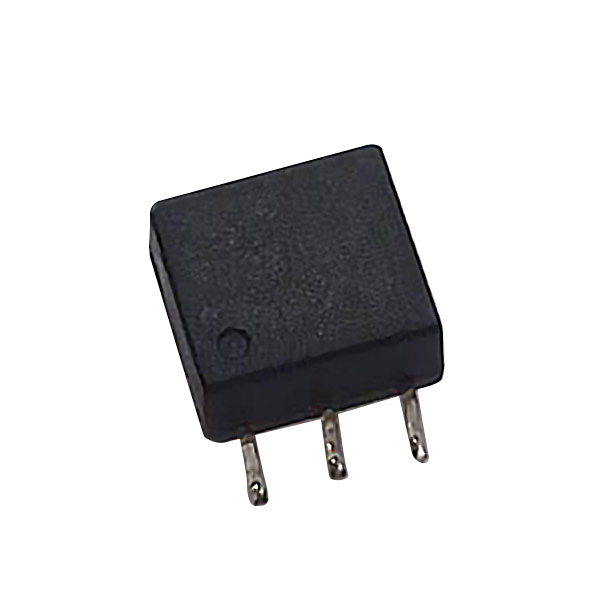

Quality High Voltage lsolation Transformer
JASN as the professional manufacturer, we would like to provide you high quality Quality High Voltage lsolation Transformer. And we will offer you the best after-sale service and timely delivery.
Model:CM0619S
Quality Isolation Transformer
You can rest assured to buy customized Quality Isolation Transformer from JASN. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
Model:CM0601S
Single Channel Isolation Module
With years of experience in production Single Channel Isolation Module, JASN can supply a wide range of Single Channel Isolation Module.
Model:CM0615S
Isolation Modules
Jansum is a professional leader China Isolation Modules manufacturer with high quality and reasonable price. Welcome to contact us.
Model:CM0625SW
High Voltage Isolation Transformer
High quality High Voltage Isolation Transformer can meet many applications, if you need, please get Jansum online timely service about High Voltage Isolation Transformer. Jansum is a leading China manufacturer, supplier and exporter.
Model:CM0616S
JASN is one of the professional Isolation Transformer manufacturers and suppliers in China. Welcome to buy newest Isolation Transformer from our factory. Our products are of high quality and offer cheap quotations, free samples and customized services are also available.
