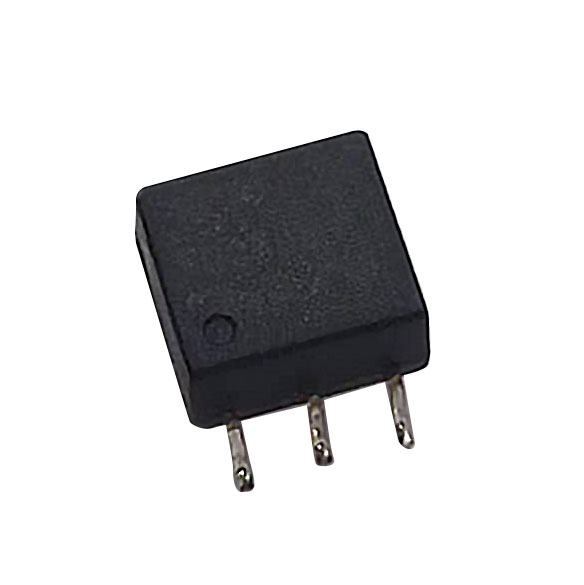

lsolation Power Transformer
lsolation Power Transformer
Jansum is China manufacturer & supplier who mainly produces lsolation Power Transformer with many years of experience. Hope to build business relationship with you.
Model:H06C05SH
Model:H06C05SH
Send Inquiry
PDF DownLoad
Factory Directly lsolation Power Transformer Made in China with Low Price. Jansum is a large-scale lsolation Power Transformer manufacturer and supplier in China.
Feature
Comply with RoHS requirements.
Operating temperature range: -40℃ to +125℃.
Storage temperature range: -40℃ to +125℃.
Creepage distance: >5mm.
Working voltage: 1000V DC.
Electrical Specifications @ 25℃
|
OCL: |
150uH Min. @100KHz/0.1V |
|
Hi-Pot : |
4300VDC 0.5mA 60Sec |
|
Turns Ratio: |
1CT:1CT±2% |
|
LK: |
0.5uH Max @100KHz/0.1V |
|
DCR: |
Pri : 0.55ohm Max |
|
Sec : 0.85ohm Max |
|
|
Insertion Loss: |
4MHZ : -0.25dB Max |
|
Return Loss: |
4MHZ : -20dB Min |
|
CMRR: |
1-10MHZ : -35dB Typ |
|
10-1000MHZ : -20dB Typ |
