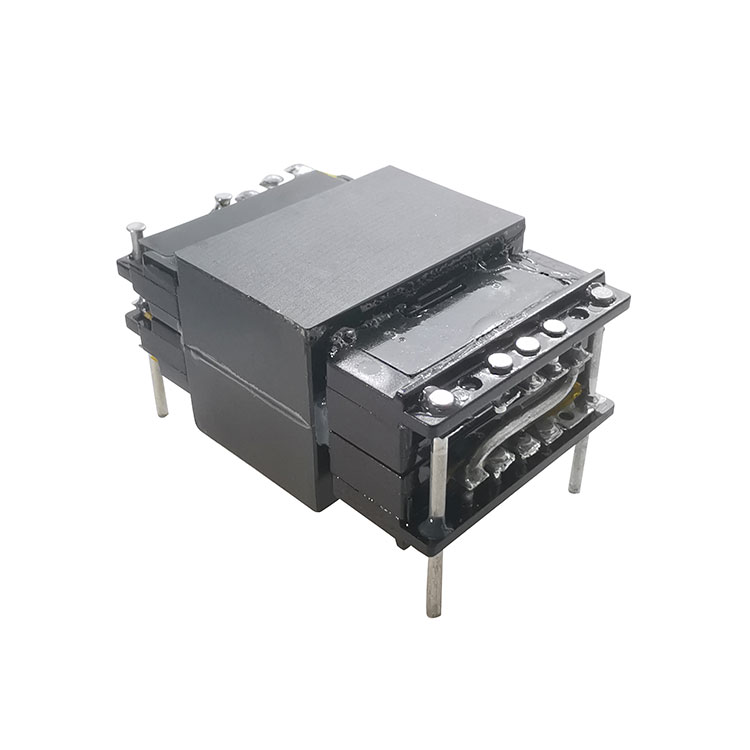

EV Charging Transformer
Hot sale quality EV Charging Transformer made in China. JASN is a large-scale EV Charging Transformer manufacturer and supplier in China.
Model:PEE4301-001
Model:PEE4301-001
Send Inquiry
PDF DownLoad
As a professional high quality EV Charging Transformer manufacturer, you can rest assured to buy EV Charging Transformer from JASN factory and we will offer you the best after-sale service and timely delivery.
EV Charging Transformer
Feature
Comply with RoHS requirements.
Operating temperature range:-40℃ to +125℃.
Storage temperature range: -40℃ to +125℃.
Electrical Specifications @ 25℃
|
OCL: |
Pin 1-7= 1.45mH Min. @100KHz/1V |
|
LK: |
Pin 1-7(short 8-11.11-14)= 10.5uH Max 100KHz 1V |
|
Pin 1-7(short 8-14)= 7.2uH Max 100KHz 1V |
|
|
Turn Ratio: |
28:6:6 ±3%. @20KHz/1.0V |
|
DCR: |
1-7: 68mΩ Max. |
|
8-14: 8mΩ Max. |
|
|
Hi-POT : |
N1-N2: 3750V AC/3mA/ 60S. |
|
N1-CORE: 3750V AC/3mA/ 60S. |
|
|
N2/N3--CORE: 500V AC/3mA/ 60S. |
|
|
IR: |
N1-N2: 100MΩ Min DC500V |
|
COIL-CORE: 100MΩ Min DC500V |
Hot Tags: EV Charging Transformer, China, Suppliers, Manufacturers, Factory, Customized, Free Sample, Newest, Buy, Cheap, Quotation
