New Energy Component

Hot Sale China New Energy Component Manufacturers and Suppliers. JASN is a large-scale New Energy Component manufacturer and supplier in China.

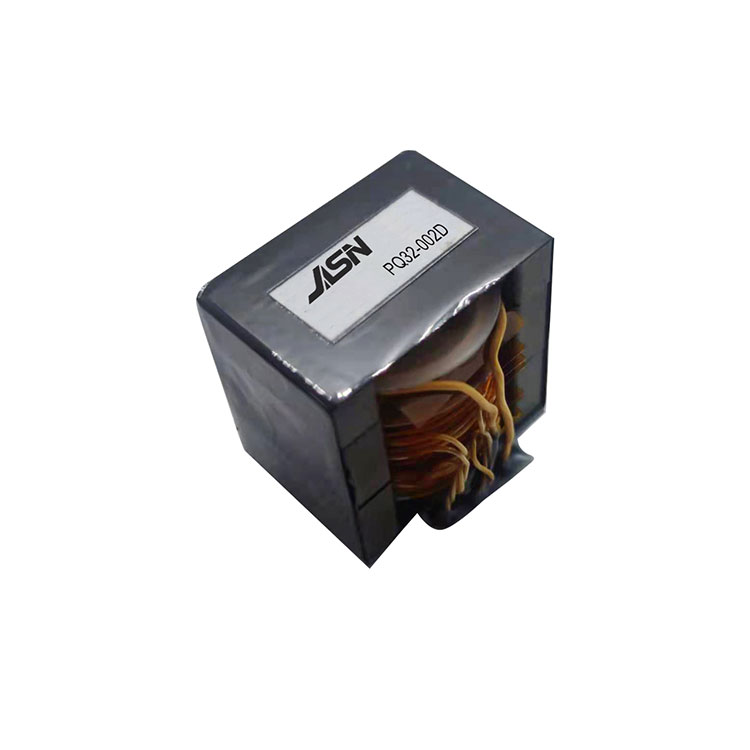

Model:PQ32-002D

Model:PQ32-002D

Send Inquiry

PDF DownLoad

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality New Energy Component. We look forward to cooperating with you.


New Energy Component


Feature


Comply with RoHS requirements.
Forward transformer for PoE applications
Operating temperature range:-40℃ to +125℃.
Storage temperature range: -40℃ to +125℃.


Electrical Specifications @ 25℃





OCL:

Pin 1-2= 300uH±10%. @1KHz/0.25V

Pin 2-3= 30uH±10%. @1KHz/0.25V

Turn Ratio:

84:10:8±3%. @20KHz/1.0V



IR:

P-S: 100MΩ Min DC500V.

P.S-C: 100MΩ Min DC500V.





Hi-POT :

PRI--SEC: 3000V AC/5mA/ 60S.

PRI--CORE: 1500V AC/5mA/ 60S.

SEC--CORE: 500V AC/5mA/ 60S.
