100M Lan Transformer

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality 100M Lan Transformer. We look forward to cooperating with you.This H16P09S is a ultra low structure series product.

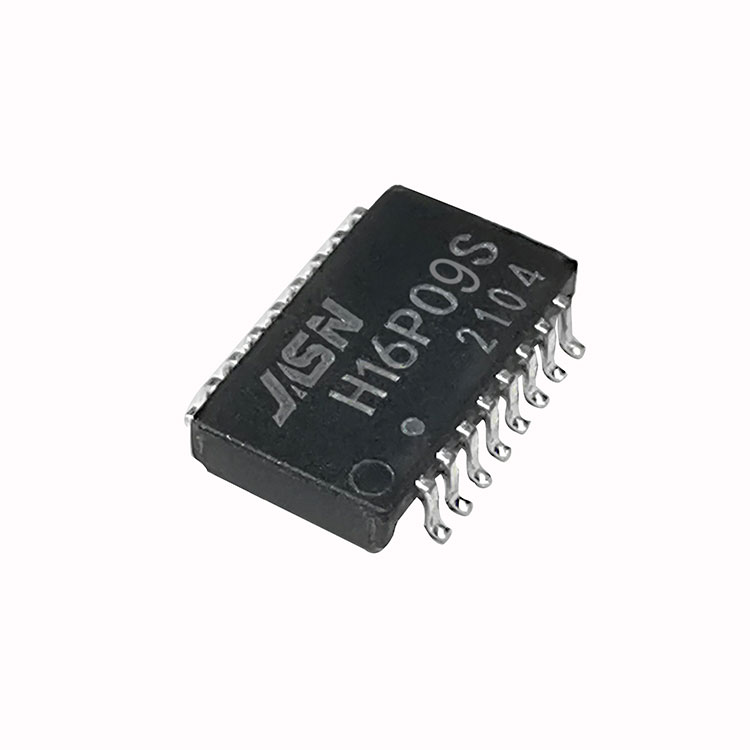

Model:H16P09S

Model:H16P09S

Send Inquiry

PDF DownLoad

Product Description

JASN as the professional manufacturer, we would like to provide you high quality 100M Lan Transformer. And we will offer you the best after-sale service and timely delivery.

Feature

Compliant with IEEE 802.3u standard.
Comply with RoHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.

Electrical Specifications @ 25℃

OCL:	350uHMin.@100KHz/0.1V
Hi-POT:	1500VAC1mA2S
TurnRatio:	1:1±3%
LK:	0.5uHMax@100KHz/0.2V
Cw/w	28pFMax@100KHz/0.2V
D.C.R:	1.1ohm Max
InsertionLoss:	1-100MHz:-1.1dBMax
CrossTalk :	1-100MHz:-30dBMin
ReturnLoss:	1-30MHz	40MHz	50MHz	60-80MHz	80-100MHz
	-18dBMin	-14.4dBMin	-13.1dBMin	-12dBMin	-10dBMin
