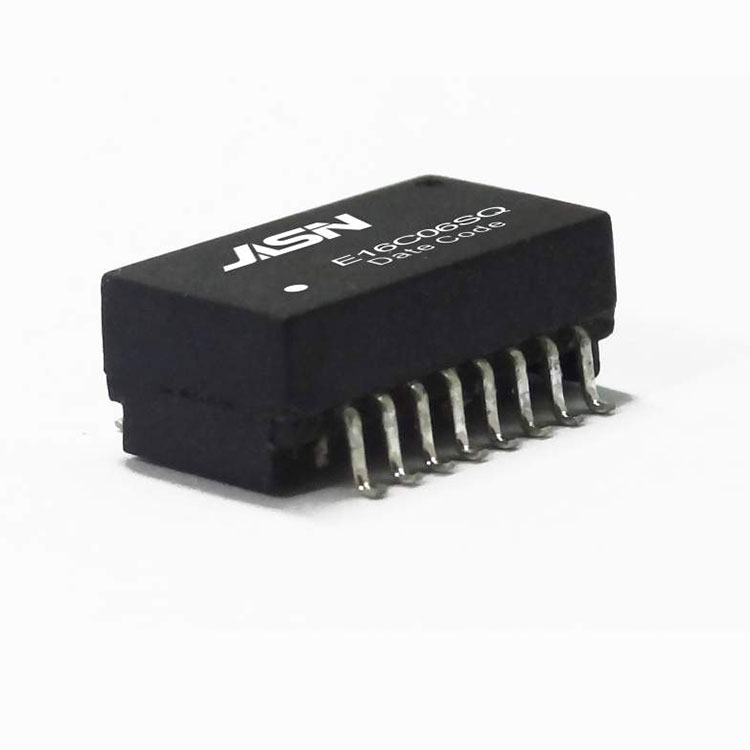

10/100Base-T Ethernet Transformer

Jansum is China manufacturer & supplier who mainly produces 10/100Base-T Ethernet Transformer with many years of experience. The PN H16C06SQ offers PoE options.

Model:H16C06SQ

Model:H16C06SQ

JASN is a professional China 10/100Base-T Ethernet Transformer manufacturer and supplier, if you are looking for the best 10/100Base-T Ethernet Transformer with low price, consult us now!

Feature

Compliant with IEEE 802.3at standard.
Comply with ROHS requirements.
Suitable for End-span POE applications with 720mA current capability.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +125℃.

Electrical Specifications @ 25℃

OCL:	350uH Min. @100KHz/0.1V with 8mA DC Bias
	280uH Min. @100KHz/0.1V with 15mA DC Bias
Hi-POT :	1500Vrms
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w	35PF Max @100KHz/0.2V
D.C.R:	1.2 ohm Max
Insertion Loss:	1-100MHz: -1.0dB Max
Cross Talk :	1-100MHz: -30dB Min
Return Loss:	1-30MHz	40MHz	50MHz	60-80MHZ	80-100MHZ
	-18dB Min	-14.4dB Min	-13.1dB Min	-12dB Min	-10dB Min
