Pulse Transformer
  • Pulse Transformer Pulse Transformer

Pulse Transformer

You can buy factory price Pulse Transformer from a reliable China Pulse Transformer manufacturer. PN G48T02 is Rohs compliant and has different pin layout option.

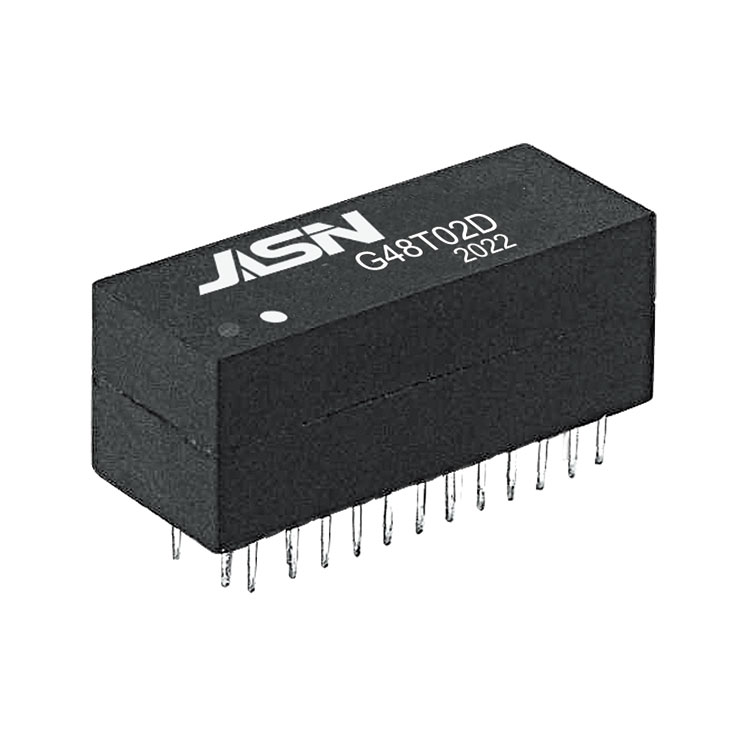

Model:G48T02D

Model:G48T02D

Send Inquiry

PDF DownLoad

You can rest assured to buy customized Pulse Transformer from JASN. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!


Feature


Compliant with IEEE 802.3 standard.
Comply with ROHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.


Electrical Specifications @ 25℃



OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

35PF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max

Cross Talk :

1-100MHz: -30dB Min



Return Loss:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
