1000Base-T Signal Transformer

JASN as a professional Signal transformer manufacturer, you can rest assured to buy 1000Base-T Signal Transformer from our factory and we will offer you the best after-sale service and timely delivery. G24C22SQ can support 4PPoE 60W PoE option.

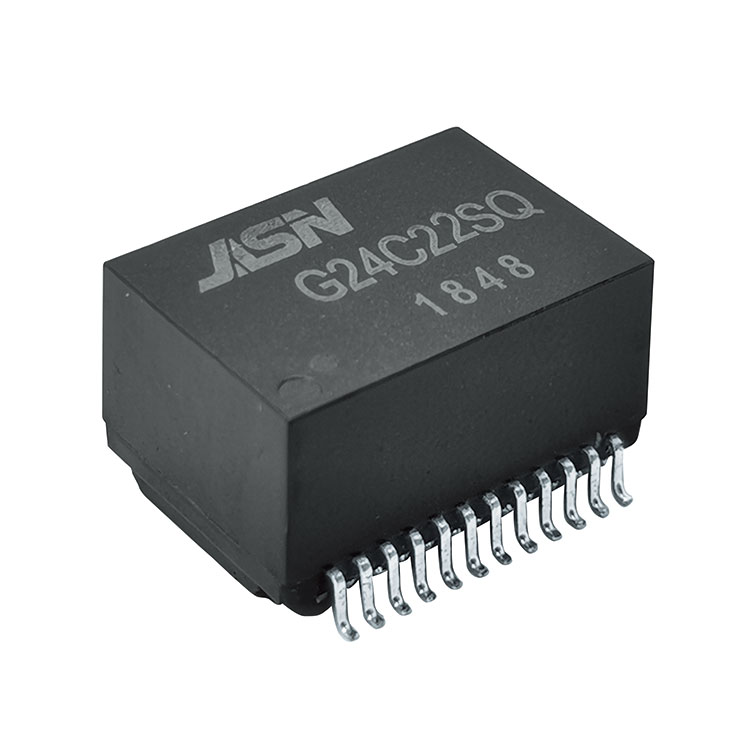

Model:G24C22SQ

Model:G24C22SQ

JASN is 1000Base-T Signal Transformer manufacturers and suppliers in China who can wholesale 1000Base-T Signal Transformer. We can provide professional service and better price for you. If you interested in 1000Base-T Signal Transformer products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Feature

Compliant with IEEE 802.3ab&802.3at standard.
Suitable for End-span PoE applications with 720mA current capability.
Comply with RoHS requirements.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +125℃

Electrical Specifications @ 25℃

OCL:	350uH Min. @100KHz/0.1V with 24mA DC Bias
Hi-POT :	1500Vrms
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w	35pF Max @100KHz/0.2V
D.C.R:	Secondary: 0.8 ohm Max
	Imbalance: ±0.065 ohm Max
Insertion Loss:	1-100MHz: -1.2dB Max
Cross Talk :	30MHz		60MHz		100MHz
	-40dB Min		-35dB Min		-30dB Min
Return Loss:	1-30MHz	30-60MHz		60-80MHZ
	-16dB Min	10-20*log (f/60)dB Min		-10dB Min
