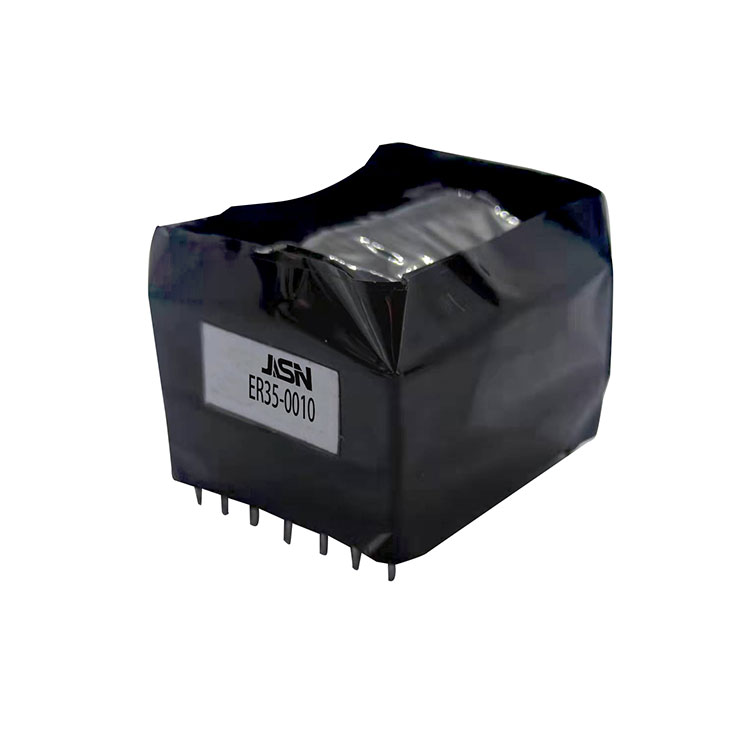

Power Transformer

JASN as the professional manufacturer, we would like to provide you Power Transformer. And we will offer you the best after-sale service and timely delivery.

Model:ER35-001D

Model:ER35-001D

Send Inquiry

PDF DownLoad

Wholesale quality Power Transformer. JASN is a Power Transformer manufacturer and supplier in China.



Power Transformer


Feature


Comply with RoHS requirements.
Operating temperature range:-40℃ to +125℃.
Storage temperature range: -40℃ to +125℃.


Electrical Specifications @ 25℃



OCL:

Pin 1-3= 400uH±10%. @100KHz/0.1V

LK:

Pin 1-3(short 8.910.11.12.13.14)= 4.0uH Max 100KHz 0.1V

Turn Ratio:

16:4:12:12:4:4:16:15 ±3%. @20KHz/1.0V



IR:

P-S: 100MΩ Min DC500V.

P.S-C: 100MΩ Min DC500V.





Hi-POT :

PRI--SEC: 3600V AC/3mA/ 6S.

PRI--CORE: 1500V AC/3mA/ 6S.

SEC--CORE: 1500V AC/3mA/ 6S.
