High Frequency Transformer
  • High Frequency Transformer - 0 High Frequency Transformer - 0

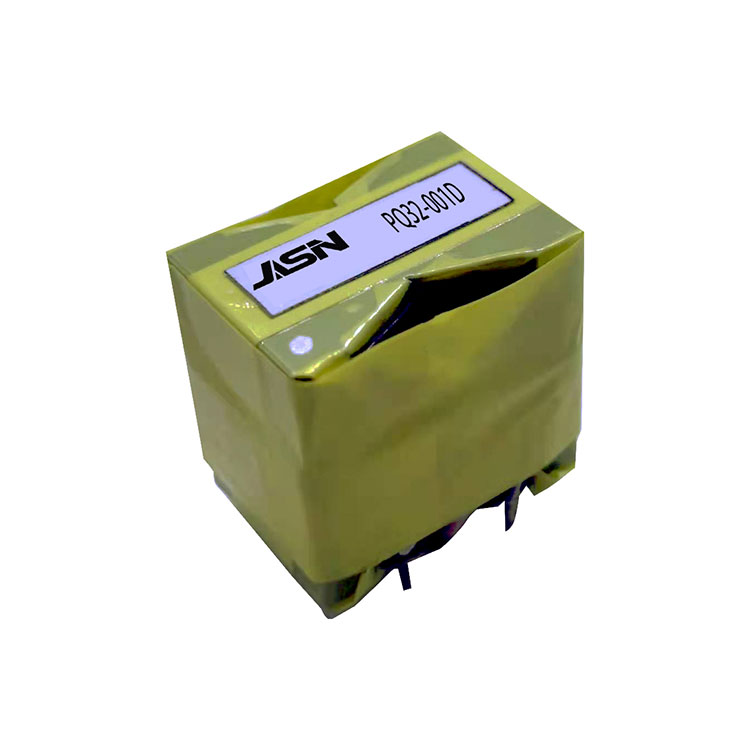

High Frequency Transformer

Welcome to buy High Frequency Transformer from JASN. Every request from customers is being replied within 24 hours.

Model:PQ32-001D

Model:PQ32-001D

Send Inquiry

PDF DownLoad

China High Frequency Transformer Factory Directly Supply. JASN is a large-scale High Frequency Transformer manufacturer and supplier in China.



High Frequency Transformer


Feature


Comply with RoHS requirements.
Operating temperature range:-40℃ to +125℃.
Storage temperature range: -40℃ to +125℃.

Electrical Specifications @ 25℃




OCL:

Pin 4-1= 115uH±15uH. @75KHz/1V

Pin 3-2= 3uH Ref. @75KHz/1V

Turn Ratio:

25.5:2.5 ±3%. @20KHz/1.0V

Hi-POT :

PRI--SEC: 1500V AC/5mA/ 60S.



Hot Tags: High Frequency Transformer, China, Suppliers, Manufacturers, Factory, Customized, Free Sample, Newest, Buy, Cheap, Quotation
