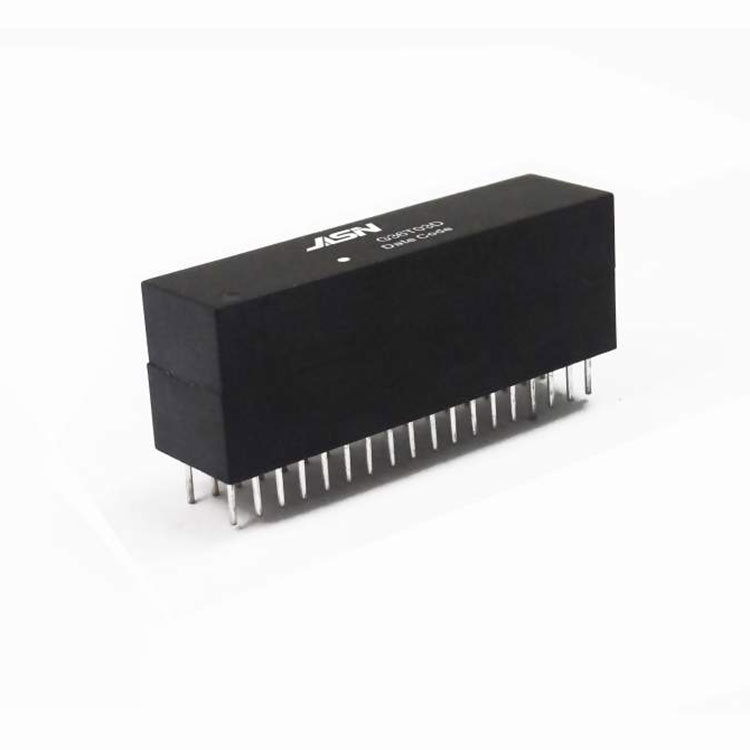

Network Transformer

Our Network Transformer offers perfect functions and superior performance. The PN G36T03D is compliant with IEEE 802.3ab standard and Rohs compliant.

Model:G36T03D

Model:G36T03D

Send Inquiry

PDF DownLoad

JASN as the professional manufacturer, we would like to provide you high quality Network Transformer. And we will offer you the best after-sale service and timely delivery.


Feature


Compliant with IEEE 802.3 standard.
Comply with ROHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.


Electrical Specifications @ 25℃


OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

120PF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max

Cross Talk :

1-100MHz: -30dB Min



Return Loss:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
