Lan Magnetics
High quality Lan Magnetics is offered by China manufacturer Jansum Electronics. G48T01DP can provide different pin layout and meet IEEE802.3ab standard.Welcome to buy product from JASN.

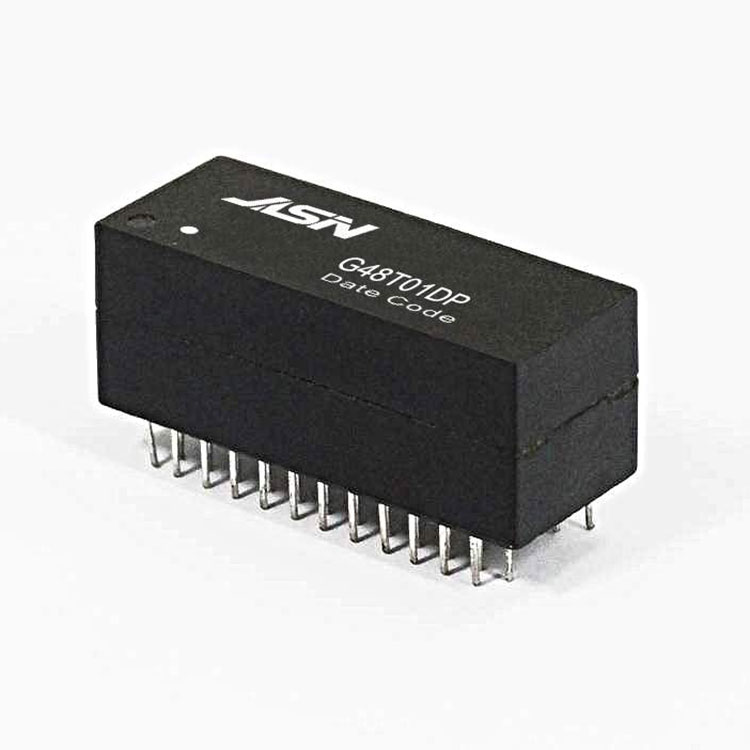

Model:G48T01DP
Model:G48T01DP
Send Inquiry
PDF DownLoad
JASN is a professional leader China Lan Magnetics manufacturer with high quality and reasonable price. Welcome to contact us.
Feature
Compliant with IEEE 802.3ab&802.3at standard.
Comply with ROHS requirements.
Suitable for End-span PoE applications with 720mA current capability
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.
Electrical Specifications @ 25℃
|
OCL: |
350uH Min. @100KHz/0.1V with 8mA DC Bias |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 ohm Max |
||||
|
Insertion Loss: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk : |
1-100MHz: -30dB Min |
||||
|
Return Loss: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
