HDBaseT Compliant

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality 1000Base-T Transformer. We look forward to cooperating with you.This G96T01D is HDBaseT Compliant product.

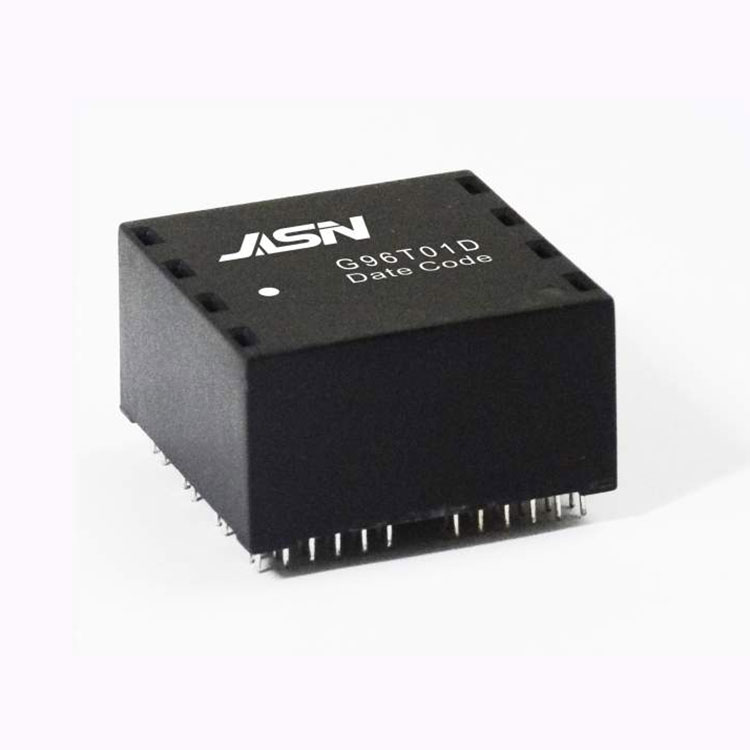

Model:G96T01D

Model:G96T01D

Send Inquiry

PDF DownLoad

Product Description

Find a huge selection of HDBaseT Compliant from China at JASN. Provide professional after-sales service and the right price, looking forward to cooperation.

Feature

Compliant with IEEE 802.3 standard.
Comply with ROHS requirements.
Operating temperature range: -0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25℃

OCL:	350uH Min. @100KHz/0.1V with 8mA DC Bias
Hi-POT :	1500Vrms
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w	35PF Max @100KHz/0.2V
D.C.R:	1.4 ohm Max
Insertion Loss:	1-100MHz: -1.0dB Max
Cross Talk :	1-100MHz: -30dB Min
Return Loss:	1-30MHz	40MHz	50MHz	60-80MHZ	80-100MHZ
	-18dB Min	-14.4dB Min	-13.1dB Min	-12dB Min	-10dB Min
