GIGABIT Discrete Lan Magnetics
JASN is a professional leader China GIGABIT Discrete Lan Magnetics manufacturer with high quality and reasonable price. Welcome to contact us. PN G24P10S is comply with RoHS requirements.

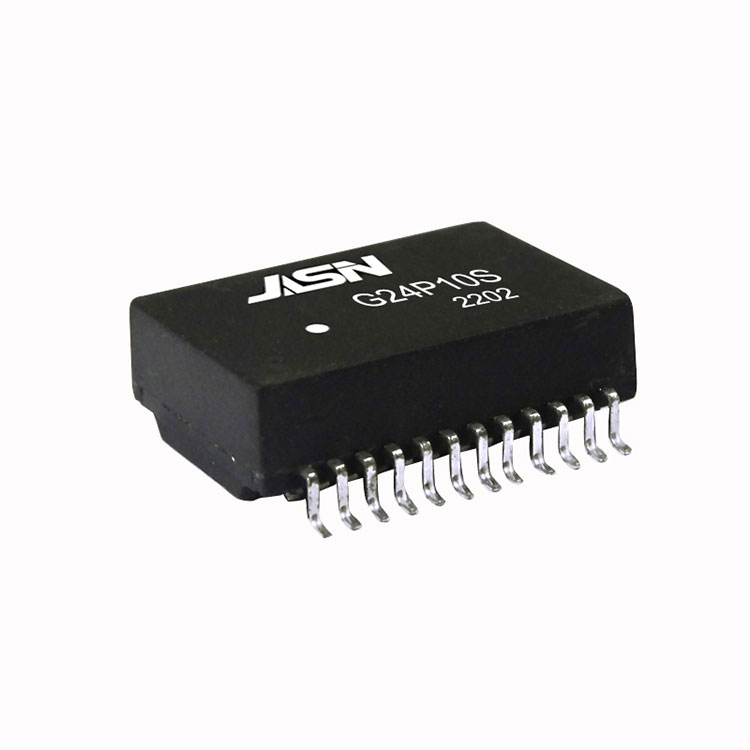

Model:G24P10S
Model:G24P10S
Send Inquiry
PDF DownLoad
JASN GIGABIT Discrete Lan Magnetics have characteristic design & practical performance & competitive price, for more information on the GIGABIT Discrete Lan Magnetics, please feel free to contact us.
Feature
Compliant with IEEE 802.3ab standard.
Comply with RoHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.
Electrical Specifications @ 25℃
|
OCL: |
350uH Min. @100KHz/0.1V |
|||
|
Hi-POT : |
1500Vrms |
|||
|
Turn Ratio: |
1:1±3% |
|||
|
LK: |
0.5uH Max @100KHz/0.2V |
|||
|
Cw/w |
28PF Max @100KHz/0.2V |
|||
|
D.C.R: |
1.2 ohm Max |
|||
|
Insertion Loss: |
1-100MHz: -1.1dB Max |
|||
|
Cross Talk : |
30MHz: -35dB Min |
|||
|
60-100MHz: -32dB Min |
||||
|
Return Loss: |
1-30MHz |
40MHz |
50MHZ |
60-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
|
|
DCMR: |
30MHz |
60MHz |
100MHz |
|
|
-40dB Min |
-35dB Min |
-30dB Min |
||
