Ethernet Transformer

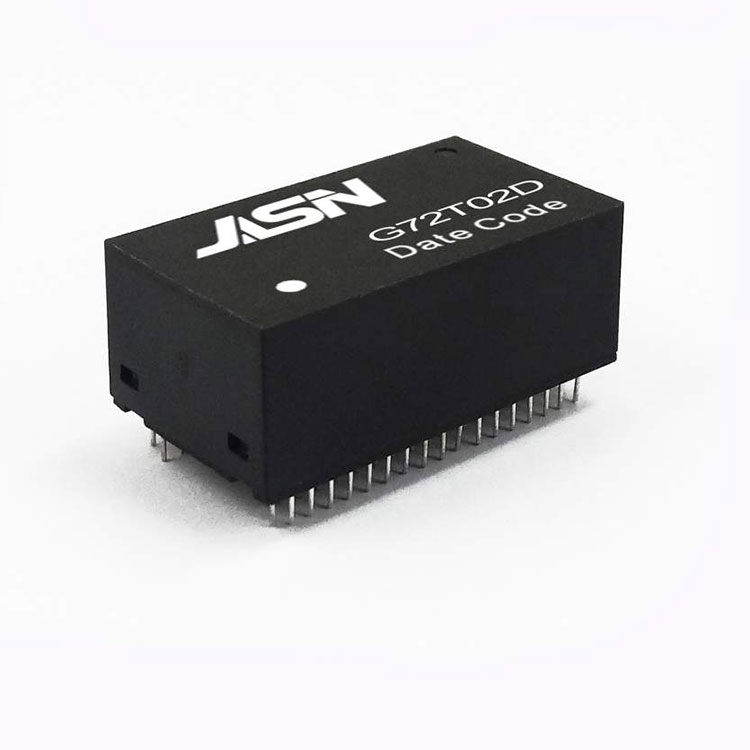

Jansum Ethernet Transformer offers perfect functions and superior performance. The PN G72T02D is DIP package and support four port application.

Model:G72T02D

Model:G72T02D

Send Inquiry

PDF DownLoad

JASN is China manufacturer & supplier who mainly produces Ethernet Transformer with many years of experience. Hope to build business relationship with you.


Feature


Compliant with IEEE 802.3 standard.
Comply with ROHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.


Electrical Specifications @ 25℃



OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

120PF Max @100KHz/0.2V

D.C.R:

1.4 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max

Cross Talk :

1-100MHz: -30dB Min



Return Loss:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
