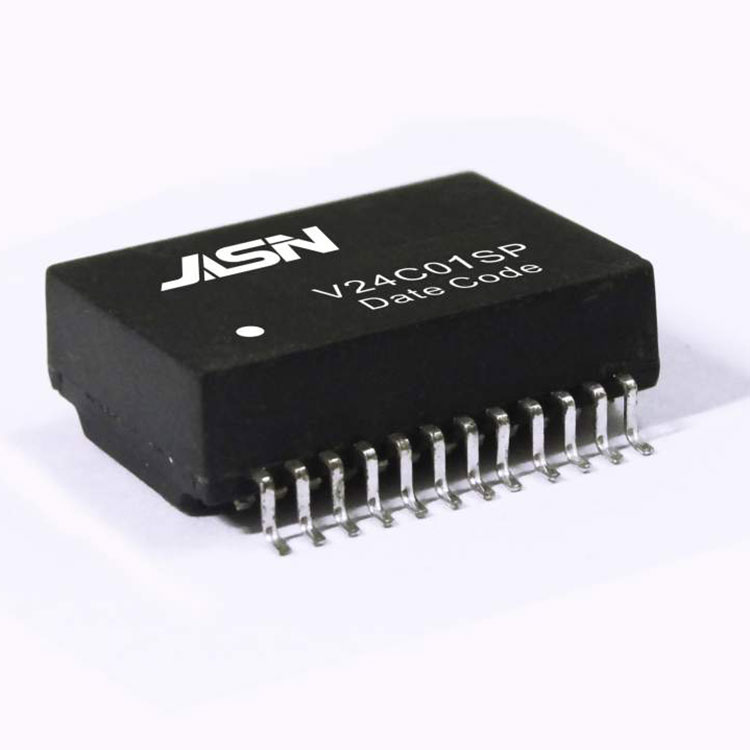

2.5GBase-T Pulse Transformer

You can rest assured to buy 2.5GBase-T Pulse Transformer from JASN factory and we will offer you the best after-sale service and timely delivery. V24C01SP is compliant with IEEE 802.3bz standard and comply with ROHS requirements.

Model:V24C01SP

Model:V24C01SP

Send Inquiry

PDF DownLoad

Product Description

JASN as one of the professional China 2.5GBase-T Pulse Transformer manufacturers and China 2.5GBase-T Pulse Transformer factory, we are strong strength and complete management. Also, we have own exporting license.

Feature

Suitable for POE+ and UPOE applications.
2.5G BASE-T Ethernet Magnetics.
Comply with ROHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -20℃to +125℃.

Electrical Specifications @ 25℃

OCL:	120uH Min. @100KHz/0.1V with 8mA DC Bias
Hi-POT :	1500Vrms
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w	35PF Max @100KHz/0.2V
D.C.R:	1.2 ohm Max
Insertion Loss:	1MHz	2-100MHz		100-250MHz
	-0.4dB Max	-1dB Max		-1.5dB Max
Cross Talk :	1-250MHz: -30dB Min
Return Loss:	1-40MHz		40-250MHz
	-18dB Min		-17+ 10*LOG(f/40) dB Min
