2.5GBase-T Network Transformer

You can rest assured to buy 2.5GBase-T Network Transformer from JASN factory and we will offer you the best after-sale service and timely delivery. The PN V24C17S provide 2.5G speed rate and has SMD package.

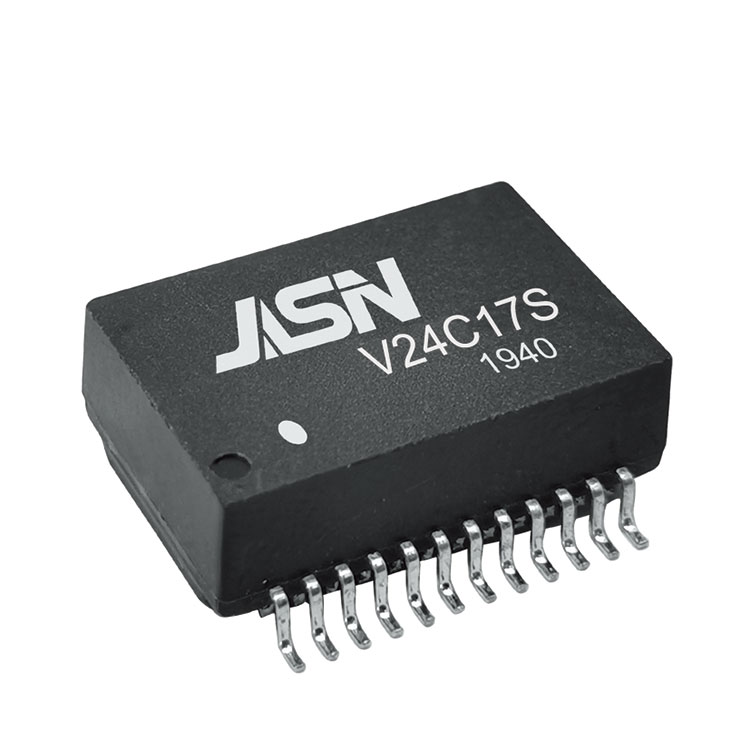

Model:V24C17S

Model:V24C17S

Send Inquiry

PDF DownLoad

Product Description

JASN is one of the famous China 2.5GBase-T Network Transformer manufacturers and 2.5GBase-T Network Transformer suppliers. Our factory specializes in manufacturing of 2.5GBase-T Network Transformer.

Feature

Suitable for PoE applications.
2.5G BASE-T Ethernet Magnetics.
Comply with ROHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -20℃ to +125℃.

Electrical Specifications @ 25℃

OCL:	180uH Min. @100KHz/0.1V
Hi-POT :	1500Vrms
Turn Ratio:	1:1±2%
LK:	0.5uH Max @100KHz/0.2V
Cw/w	35PF Max @100KHz/0.2V
D.C.R:	1.2 ohm Max
Insertion Loss:	1-50MHZ	50-125MHz
	-0.5dB Max	-1.0dB Max
Cross Talk :	1-125MHz: -39dB Min
Return Loss:	1-40MHz		40-200MHz
	-20dB Min		-20+ 15*Log10(f/40) dB Min
CMR(dB TYP)	30-200MHz：-30dB
CDMR(dB TYP)	10-125MHz：-45+ f/35dB
