10GBase-T Lan Transformer
  • 10GBase-T Lan Transformer - 0 10GBase-T Lan Transformer - 0

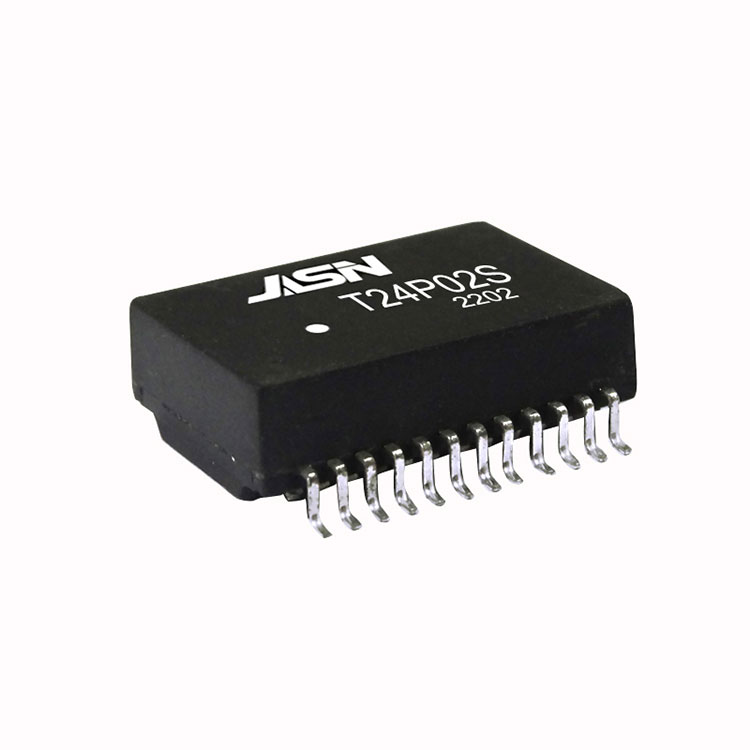

10GBase-T Lan Transformer

You can buy JASN factory price 10GBase-T Lan Transformer from a reliable China Lan Transformer manufacturer JASN. PN T24P02S is Rohs compliant and has different pin layout option.

Model:T24P02S

Model:T24P02S

Send Inquiry

PDF DownLoad

JASN is one of the famous China 10GBase-T Lan Transformer manufacturers and suppliers. Our factory specializes in manufacturing of Lan Transformer.


Feature


10G BASE-T Ethernet Magnetics
Comply with RoHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -20℃to +125℃.


Electrical Specifications @ 25℃



OCL:

120uH Min. @100KHz/0.1V

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

18PF Max @100KHz/0.2V

D.C.R:

0.6 ohm Max



Insertion Loss:

1-200MHz

200-400MHz

400-500MHz

-1dB Max

-2dB Max

-3dB Max

Cross Talk :

1-500MHz: -30dB Min



Return Loss:

1-200MHz

200-300MHz

300-400MHz

400-500MHz

-16dB Min

-14dB Min

-11dB Min

-9dB Min
