10GBase-T Lan Magnetics

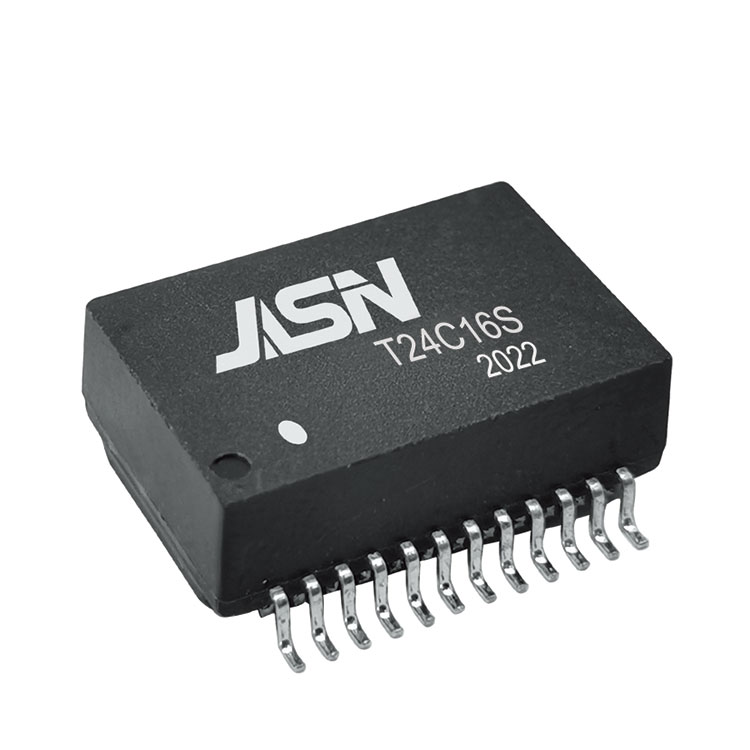

JASN as a professional 10GBase-T Lan Magnetics manufacturer, you can rest assured to buy Lan Transformer from our factory and we will offer you the best after-sale service and timely delivery. T24C16S is 10GBASE-T Single Port Magnetics Module.

Model:T24C16S

Model:T24C16S

Send Inquiry

PDF DownLoad

Product Description

JASN as the professional manufacturer, we would like to provide you high quality 10GBase-T Lan Magnetics. And we will offer you the best after-sale service and timely delivery.

Feature

Comply with RoHS requirements.
Suitable for POE applications with 600mA current.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.

Electrical Specifications @ 25℃

OCL:	120uH Min. @100KHz/0.1V with 8mA Bias
Hi-Pot :	1500Vrms 1mA 2S
Turns Ratio:	1CT:1CT±3%
D.C.R:	1.0 ohm Max
Insertion Loss:	-1.5dB Max@1-250MHz
Insertion Loss:	-3.0dB Max@250-500MHz
Return Loss	-16dB Min@1-40MHz
Return Loss	-16+10log(f/40)dB Min@40-500MHz
Crosstalk	-35dB Min@1-100MHz
Crosstalk	-30dB Min@100-500MHz
CMRR	-30dB Min@1-250MHz
CMRR	-20dB Min@250-500MHz
