100M Network Transformer
  • 100M Network Transformer 100M Network Transformer

100M Network Transformer

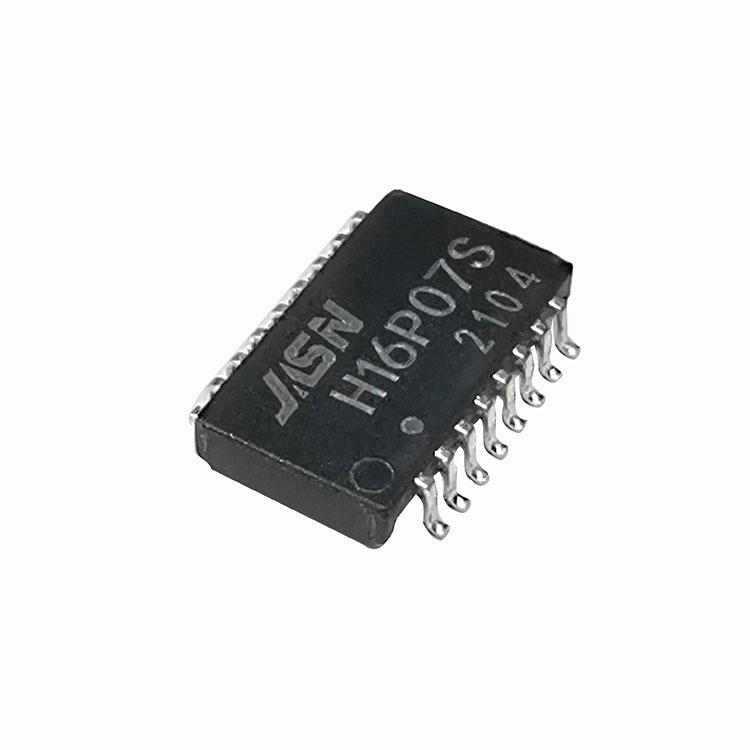

JASN as one of the professional China 100M Network Transformer manufacturers and China factory, we are strong strength and complete management. H16P07S is a ultra low structure series product and the height is 2.20mm typ.

Model:H16P07S

Model:H16P07S

Send Inquiry

PDF DownLoad

JASN as a professional high quality 100M Network Transformer manufacturer, you can rest assured to buy 100M Network Transformer from our factory and we will offer you the best after-sale service and timely delivery.


Feature


Compliant with IEEE 802.3 standard.
Comply with ROHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.


Electrical Specifications @ 25℃



OCL:

350uH Min. @100KHz/0.1V

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

35PF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max

Cross Talk :

1-100MHz: -30dB Min



Return Loss:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
