100M Ethernet Transformer

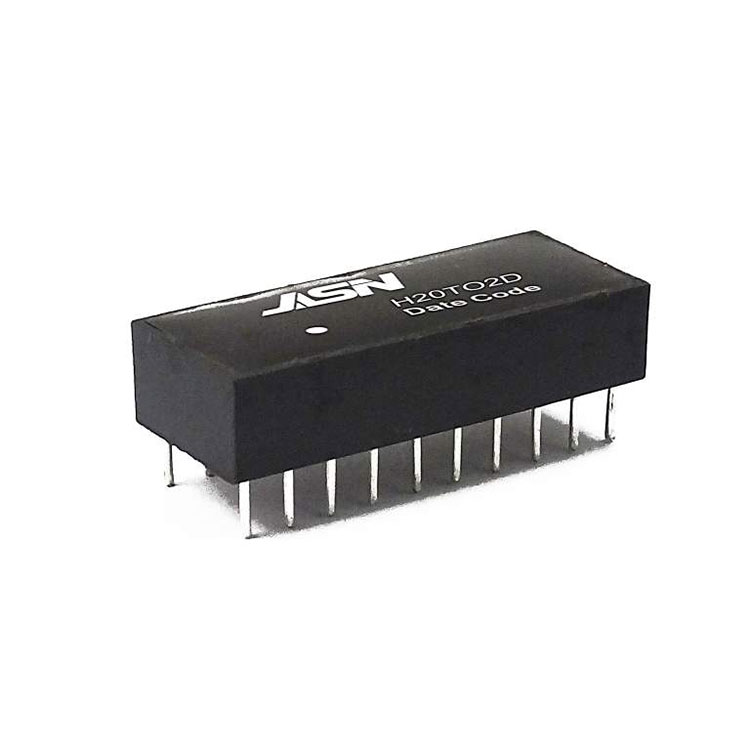

High quality 100M Ethernet Transformer is offered by China manufacturer JASN Electronics. H20T02D is a small size of DIP 20Pin Seires.

Model:H20T02D

Model:H20T02D

Send Inquiry

PDF DownLoad

JASN is a professional leader China 100M Ethernet Transformer manufacturer with high quality and reasonable price. Welcome to contact us.


Feature


Compliant with IEEE 802.3u standard.
Comply with RoHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.


Electrical Specifications @ 25℃



OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

65PF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max

Cross Talk :

1-100MHz: -30dB Min



Return Loss:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
