1000M Transformer

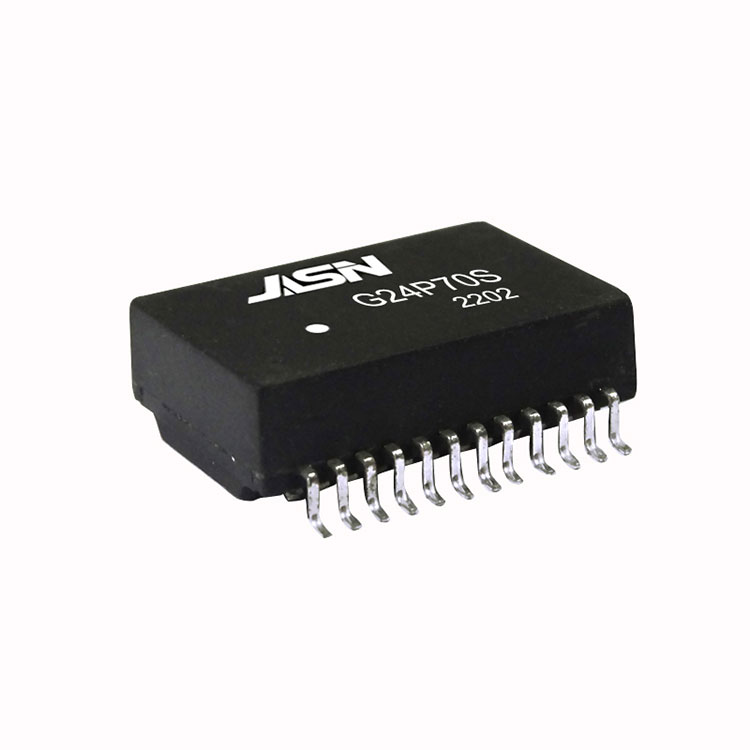

JASNis a leading China 1000M Transformer manufacturer, supplier and exporter. The PN G24P70S designed to meet IEEE 802.3ab standard and it is suitable for PCMCIA application.

Model:G24P70S

Model:G24P70S

Send Inquiry

PDF DownLoad

Product Description

As a professional 1000M Transformer manufacturer, you can rest assured to buy 1000M Transformer from JASN factory and we will offer you the best after-sale service and timely delivery.

Feature

Compliant with IEEE 802.3ab standard.
Comply with RoHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25℃

OCL:	350uH Min. @100KHz/0.1V with 8mA DC Bias
Hi-POT :	1500Vrms
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w	35PF Max @100KHz/0.2V
D.C.R:	1.2 ohm Max
Insertion Loss:	1-100MHz: -1.0dB Max
Cross Talk :	1-100MHz: -35dB Min
Return Loss:	1-30MHz	40MHz	50MHz	60-80MHZ	80-100MHZ
	-18dB Min	-14.4dB Min	-13.1dB Min	-12dB Min	-10dB Min
