1000M Signal Transformer

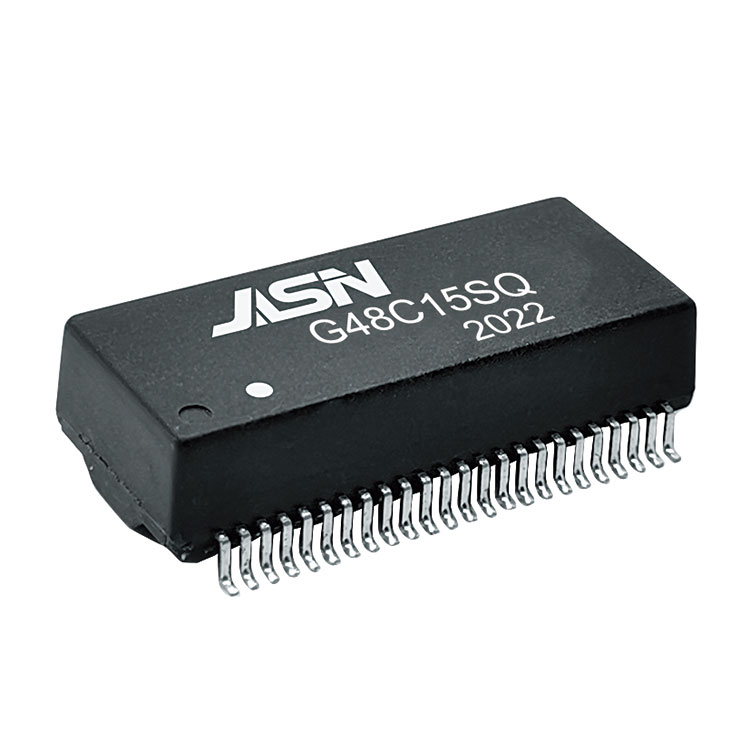

You can rest assured to buy 1000M Signal Transformer from JASN factory and we will offer you the best after-sale service and timely delivery. G48C15SQ is Dual channel and PoE option product.

Model:G48C15SQ

Model:G48C15SQ

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality 1000M Signal Transformer. We look forward to cooperating with you.

Feature

Compliant with IEEE 802.3ab&802.3bt standard.
Suitable for End-span PoE applications with 720mA current capability.
Comply with RoHS requirements.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +125℃

Electrical Specifications @ 25℃

OCL:	350uH Min. @100KHz/0.1V with 8mA DC Bias
	280uH Min. @100KHz/0.1V with 21mA DC Bias
Hi-POT :	6000V Surge 10/700us
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w	35pF Max @100KHz/0.2V
D.C.R:	1.2 ohm Max
Insertion Loss:	1-100MHz: -1.0dB Max
Cross Talk :	30MHz		60MHz			100MHz
	-40dB Min		-35dB Min			-30dB Min
Return Loss:	1-30MHz	40MHz		50MHz	60-80MHZ		80-100MHZ
	-18dB Min	-14.4dB Min		-13.1dB Min	-12dB Min		-10dB Min
