1000M Pulse Transformer

JASN is a professional leader China 1000M Pulse Transformer manufacturer with high quality and reasonable price. Welcome to contact us. PN G48C07SP meets IEEE 802.3AF/AT.

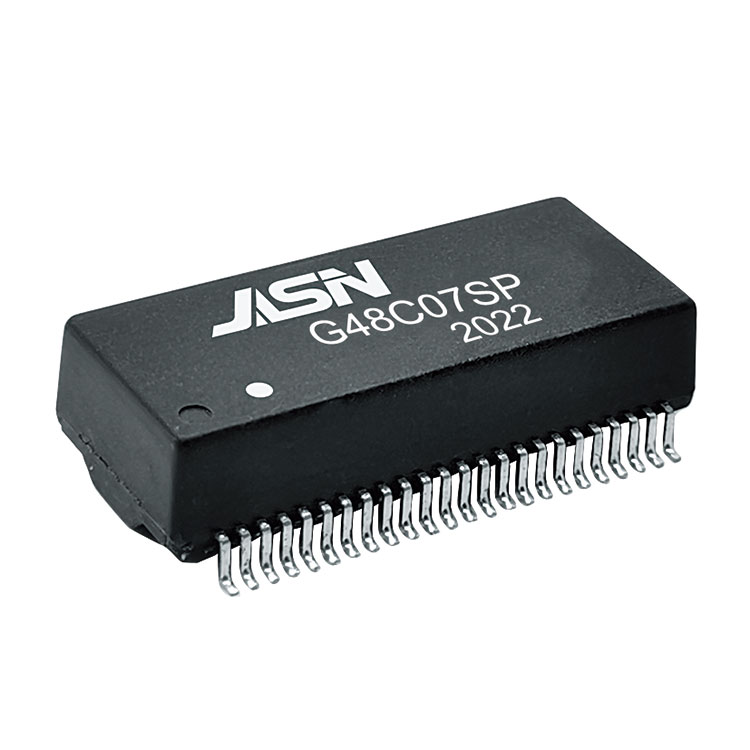

Model:G48C07SP

Model:G48C07SP

JASN as a professional high quality 1000M Pulse Transformer manufacturer, you can rest assured to buy 1000M Pulse Transformer from our factory and we will offer you the best after-sale service and timely delivery.

Feature

Compliant with IEEE 802.3ab standard.
Comply with ROHS requirements.
Suitable for End-span POE applications with 600mA current capability.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +105℃

Electrical Specifications @ 25℃

OCL:	350uH Min. @100KHz/0.1V with 8mA DC Bias 200uH Min. @100KHz/0.1V with 18mA DC Bias
Hi-POT :	1500Vrms
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w	35PF Max @100KHz/0.2V
D.C.R:	1.2 ohm Max
Insertion Loss:	1-100MHz: -1.0dB Max
Cross Talk :	1-100MHz: -30dB Min
Return Loss:	1-30MHz	40MHz	50MHz	60-80MHZ	80-100MHZ
	-18dB Min	-14.4dB Min	-13.1dB Min	-12dB Min	-10dB Min
