1000M Discrete Lan Magnetics
High quality 1000M Discrete Lan Magnetics is offered by China manufacturer JASN. G50C01S can provide different pin layout and meet IEEE802.3ab standard.

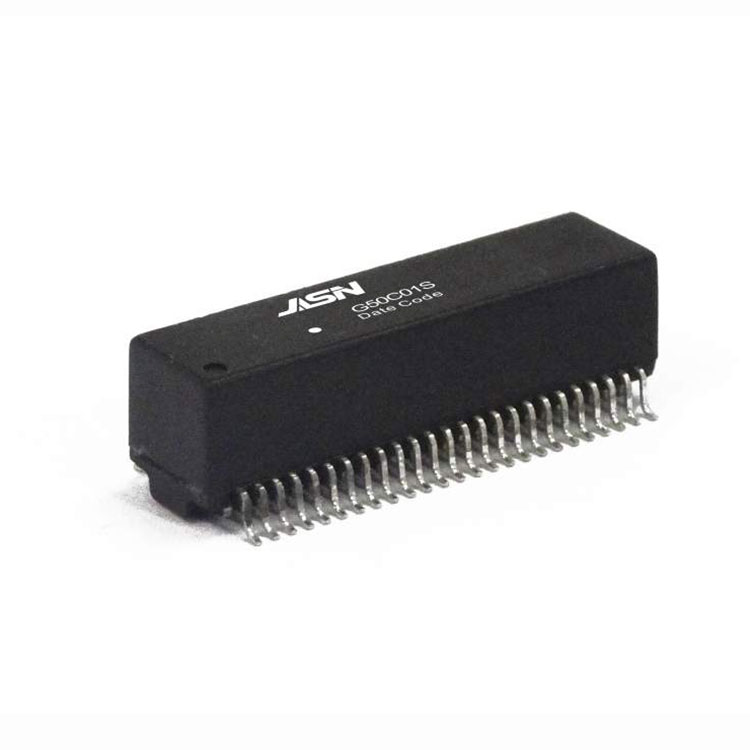

Model:G50C01S
Model:G50C01S
Send Inquiry
PDF DownLoad
With years of experience in production 1000M Discrete Lan Magnetics, JASN can supply a wide range of 1000M Discrete Lan Magnetics. In addition to the product list below, you can also customize your own unique 1000M Discrete Lan Magnetics according to your specific needs.
Feature
Compliant with IEEE 802.3 standard.
Comply with ROHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25℃
|
OCL: |
350uH Min. @100KHz/0.1V with 8mA DC Bias |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 ohm Max |
||||
|
Insertion Loss: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk : |
1-100MHz: -30dB Min |
||||
|
Return Loss: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
