1000Base-T Transformer

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality 1000Base-T Transformer. We look forward to cooperating with you.This G24P12S is compliant with IEEE 802.3ab standard and operating temperature range:0℃ to +70℃.

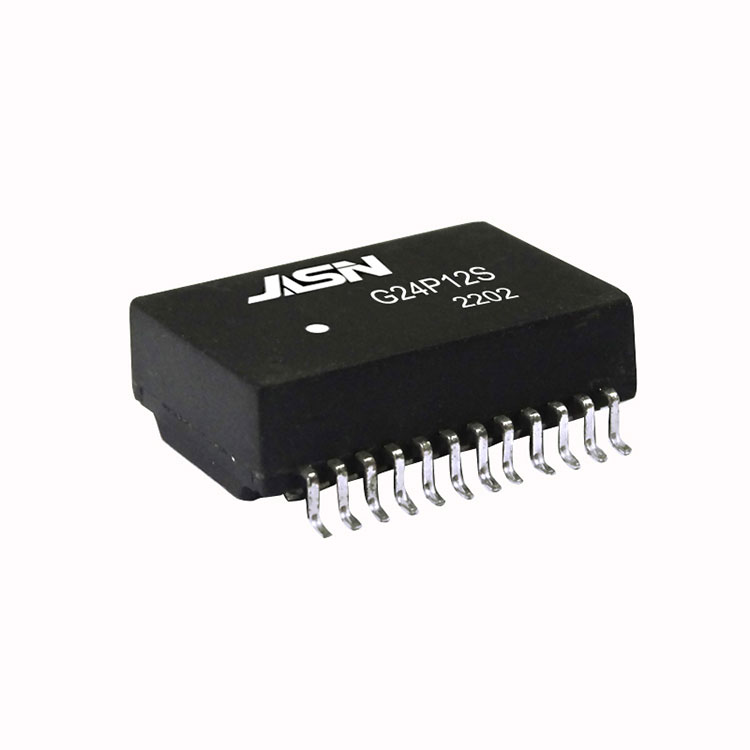

Model:G24P12S

Model:G24P12S

Send Inquiry

PDF DownLoad

Product Description

You can rest assured to buy 1000Base-T Transformer from JASN factory and we will offer you the best after-sale service and timely delivery.

Feature

Compliant with IEEE 802.3ab standard.
Comply with RoHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.

Electrical Specifications @ 25℃

OCL:	350uH Min. @100KHz/0.1V
Hi-POT :	1500Vrms
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w	28PF Max @100KHz/0.2V
D.C.R:	1.2 ohm Max
Insertion Loss:	1-100MHz: -1.1dB Max
Cross Talk :	30MHz: -35dB Min
	60-100MHz: -32dB Min
Return Loss:	1-30MHz	40MHz	50MHZ	60-100MHZ
	-18dB Min	-14.4dB Min	-13.1dB Min	-12dB Min
DCMR:	30MHz	60MHz	100MHz
	-40dB Min	-35dB Min	-30dB Min
