18G HDBase-T Transformer
JASN as a professional 18G HDBase-T Transformer, you can rest assured to buy HDBase-T Transformer from our factory and we will offer you the best after-sale service and timely delivery. T24C18S is designed for Audio-Video application. This part is comply with Valens chips.

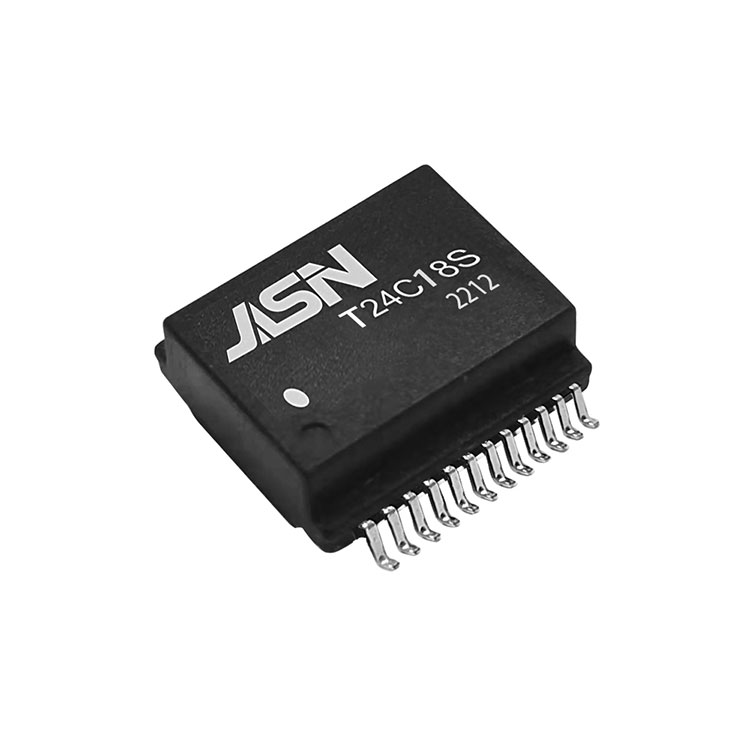

Model:T24C18S
Model:T24C18S
Send Inquiry
PDF DownLoad
High quality 18G HDBase-T Transformer is offered by China manufacturer JASN. Buy 18G HDBase-T Transformer which is of high quality directly with low price.
Feature
Compliant with IEEE 802.3
Comply with RoHS requirements.
Designed to support applications up to 600mA Per centre tap
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.
Electrical Specifications @ 25℃
|
OCL: |
120uH Min. @100KHz/0.1V, |
|
Hi-POT : |
1500Vrms |
|
Turn Ratio: |
1CT:1CT±3% |
|
Insertion Loss: |
-2.0dB Max @1-600MHz |
|
-2.5dB Max @600-800MHz |
|
|
Return Loss: |
-20dB Min @1-40MHz |
|
-20+10log(f/40)dB Min @40-600MHz |
|
|
-9+20log(f/600)dB Min @600-800MHz |
|
|
Cross Talk : |
-40dB Min @1-100MHz |
|
-25dB Min @100-600MHz |
|
|
-18dB Min @600-800MHz |
|
|
CMRR: |
-30dB Min @1-100MHz |
|
-20dB Min @100-600MHz |
|
|
-15dB Min @600-800MHz |
